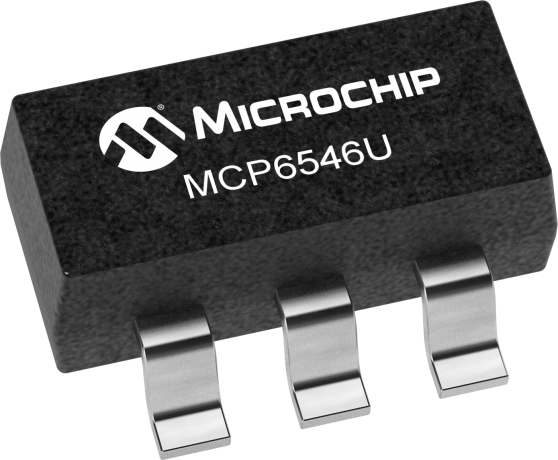

MCP6546UT-E/OT Amplifiers & Comparators by Microchip Technology
Open-Drain Output Sub-Microamp Comparators
| Status: | Active |
|---|---|
| Series: | MCP6546U |
| RoHS: | Compliant |
Where to Buy
Prices starting from US$0.10
| Distributor | Stock | ||
|---|---|---|---|
|
Microchip Technology
from US$0.29
|
183,200
in stock
|
Buy Now |
|
element14
from US$0.33
|
3,012
in stock
|
Buy Now |
|
Farnell
from US$0.30
|
3,012
in stock
|
Buy Now |
|
Newark Electronics
from US$0.10
|
18
in stock
|
Buy Now |
|
RS
from US$0.29
|
0
in stock
|
Buy Now |
|
Future Electronics
from US$0.32
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.32
|
0
in stock
|
Buy Now |
|
TME
from US$0.29
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.35
|
0
in stock
|
Buy Now |
|
EBV Elektronik
-
|
0
in stock
|
Buy Now |
|
Avnet Silica
-
|
0
in stock
|
Buy Now |
| Buy Now |
Features
| Open Drain Output |
| Output can be level shifted up to 9V via external pull-up resistor |
| 4us Propagation Delay |
| Low Operating Voltage, 1.6V to 5.5V |
| Low Operating Current, 600nA (typical) |
| Small 5-pin SOT-23 Package |
Specifications
| # of Channels | 1 |
|---|---|
| Typical Prop Delay (ns) | 4000 |
| Output Type | Open Drain |
| Supply Voltage Min. (V) | 1.6 |
| Supply Voltage Max. (V) | 5.5 |
| Iq Typical (µA) | 0.6 |
| Iq Max (µA) | 1 |
| Vos Max. (µV) | 7000 |
| Operating Temperature Range (°C) | -40 to 125 |
| Pins | Packaging | 5 | SOT-23 |
| Temp Range | -40C to +125C |
| Packing Media | Tape and reel (3000) |
Last 6 months Inventory & Pricing History
Resources
Data Sheets |
|---|
| MCP6546/6R/6U/7/8/9 Datasheet |
Board Design Files |
|---|
| SPICE Model for MCP6546/6R/6U/7/8/9 Devices |
Environmental Information
| JEDEC Indicator | e3 |
|---|---|
| ROHS | Compliant |
| China EFUP | Compliant |
| Device Weight (g) | 0.016 |
| Shipping Weight (kg) | 0.049 |
| Lead Count | 5 |
| Package Type | SOT-23 |
| Soldering Composition | Matte Tin |
Alternative Descriptions
| Single 1.6V Open Drain Comparator, E temp | Microchip Technology |
| COMP, O-D, 1.6V, SINGLE, SOT23-5 | element14 |
| Analogue Comparator, Single, Sub-Microamp, 1, 3 S, 1.6V To 5.5V, Sot-23, 5 Rohs Compliant: Yes |Microchip Technology MCP6546UT-E/OT | Newark Electronics |
| Microchip MCP6546UT-E/OT Comparator | RS |
| SINGLE 1.6V OPEN DRAIN COMPARATOR, E TEMP | Future Electronics |
| Analogue Comparator, Single, Sub-Microamp, 1 Channels, 3 ?s, 1.6V to 5.5V, SOT-23, 5 Pins | Avnet America |
| IC: comparator | TME |
| MICROCHIP MCP6546UT-E/OT COMPARATOR, OPEN DRAIN O/P, 1.6 TO 5.5 V 5-PIN SOT-23 | RS Americas |
| Analogue Comparator, Single, Sub-Microamp, 1 Channels, 3 �s, 1.6V to 5.5V, SOT-23, 5 Pins | EBV Elektronik |
