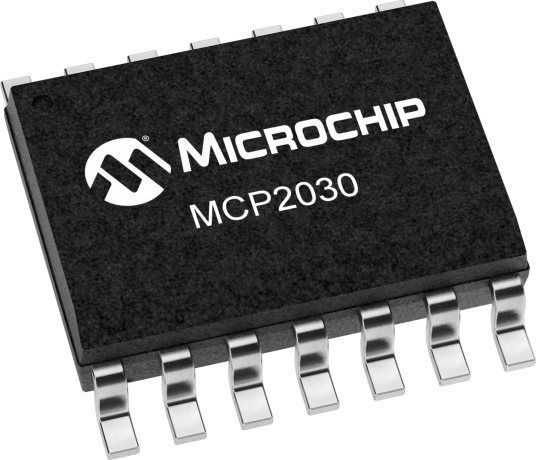

MCP2030-I/SL MCP2030 by Microchip Technology
3F ANALOG TRANSPONDER
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Operation Voltage Min.(V) | +2 |
|---|---|
| Operation Voltage Max.(V) | +3.6 |
| Carrier Freq. (kHz) | 125 |
| Input Sensitivity (mVpp) | 1 |
| Frequency Range Typ ( KHz) | 125 |
| Sensitivity Typical (mVpp) | 3 |
| Sensitivity Min (mVpp) | 1 |
| Sensitivity Max (mVpp) | 6 |
| Number of Input Channel | 3 |
| Input Channel Enable / Disable | True |
| Programable Wake-Up Filter | True |
| Wake-Up Pattern Enable / Disable | True |
| Input Range (Vpp) | 0 to 10 |
| Input Data Rate (kbit/sec) | 10 |
| RSSI Output | Analog Current |
| LF-Talkback Feature | True |
| Sleep Current (nA) | 200 |
| Input Data Structure | AGC Settling Time (3ms) + Wake-up Filter (8 ms Max) + Data |
| Programmable Internal Tuning Capacitor | 0 ~ 63 pF, 64 steps, 1 pF/ step |
| Programmable Input Modulation Depth Control | 8%, 14 %, 33%, or 66 % |
| Programmable Sensitivity Control | 2dB/step, upto 30 dB |
| Programmable Output Type | Demodulated Output (amplitude), RSSI, or Carrier Clock |
| Low Standby Current Typ (nA) | 5 uA when all channels enabled |
| Low Operating Current Typ (nA) | 13 uA when all channels enabled |
| Batteryless Operating Circuit | Yes with external circuit |
| Temperature Range | -40C to +85C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 3ch, AFE with 1 mVPP Input Detection Sensitivity | ECOM |
| Analog Front End IC, 3 Channels, Microwire, SPI, 2 V to 3.6 V, 14 Pins, NSOIC | Avnet America |
| IC: A/D converter | TME |
