LX3301AQPW-TR Special Function by Microchip Technology

The LX3301A is a highly integrated programmable data conversion IC designed for interfacing to and managing of inductive position sensors.  These sensors use printed circuit board (PCB) traces to accurately detect the location of the metal target and are immune to stray magnetics fields and eliminate the need of a magnet,  required with other types of magnetic field based sensors.   The device includes an integrated oscillator circuit for driving the primary coil of an inductive sensor, along with two independent analog conversion paths for conditioning, converting, and processing of sine and cosine analog signals from the secondary coils of the sensor. Each path includes an EMI filter, demodulator, anti-alias filter, programmable amplifier, and a 13-bit sigma-delta analog-to-digital converter.  The resulting output is an accurate 12-bit resolution signal that represent the movement of the metal target over the PCB based sensor.

Each analog signal path includes digital calibration capability which allows the complete analog path (including the external sensors) to be calibrated during the system manufacturing process. The calibration information is written to an internal EEPROM resulting in improved production yields, and in-line system upgrades.    The EEPROM is coupled with an internal 32-bit RISC processor to provide programmable advanced digital filtering, fault monitoring, and signal processing options to use the IC in wide range of applications.

System output interfaces include a 16-bit PWM output and a 12-bit digital-to-analog converter (DAC) output.

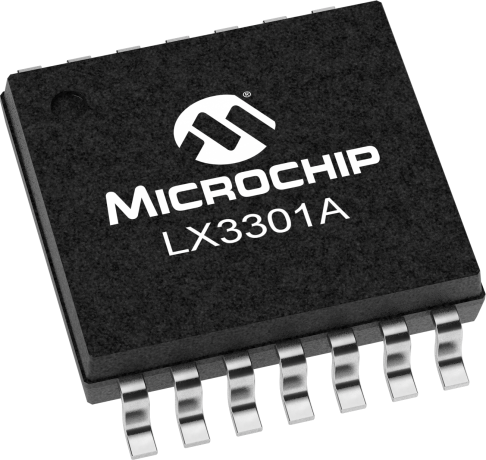

The LX3301A is offered in TSSOP14, the device is specified over a temperature range of -40°C to +125°C making it suitable for a wide range of commercial, industrial, medical, and/or automotive sensor applications.

Get a head start on your design by visiting our Inductive Position Sensor Design Page

The below list of technical documents, software and reference designs are available upon request, for more information, please contact [email protected].
- LX3301A Datasheet
- LX3301A Evaluation Kit User Guide
- LX3301A Auto Calibration User Guide
- Sensor Evaluation and Calibration Software (1.x)
- Sensor Evaluation and Calibration Software Beta Version (2.x)

Microchip can help with your own sensor design with its own unique mechanical constraints.  You can start with one of our Kits, but Microchip is ready to help you from day one.   Talk with our sales team and describe your sensor requirement.  We will work with you on getting a design up and running to take advantage of this advanced technology.

Get started with your first design by ordering a position sensor evaluation kit for your first project.  There are linear and rotational evaluation kits available.    Each kits includes a Sensor evaluation board, a IPCE programmer, links to our IPCE software, and applicable cables.  There are also separate evaluation boards and programmers available for orders.

KITS (includes a Sensor, Programmer, and cables)
LXK3301AR001
LXK3301AL003

EVB (Sensor):
LXE3301AR001
LXE3301AL003

Programmer (programmer and Cable):
LXM9518
