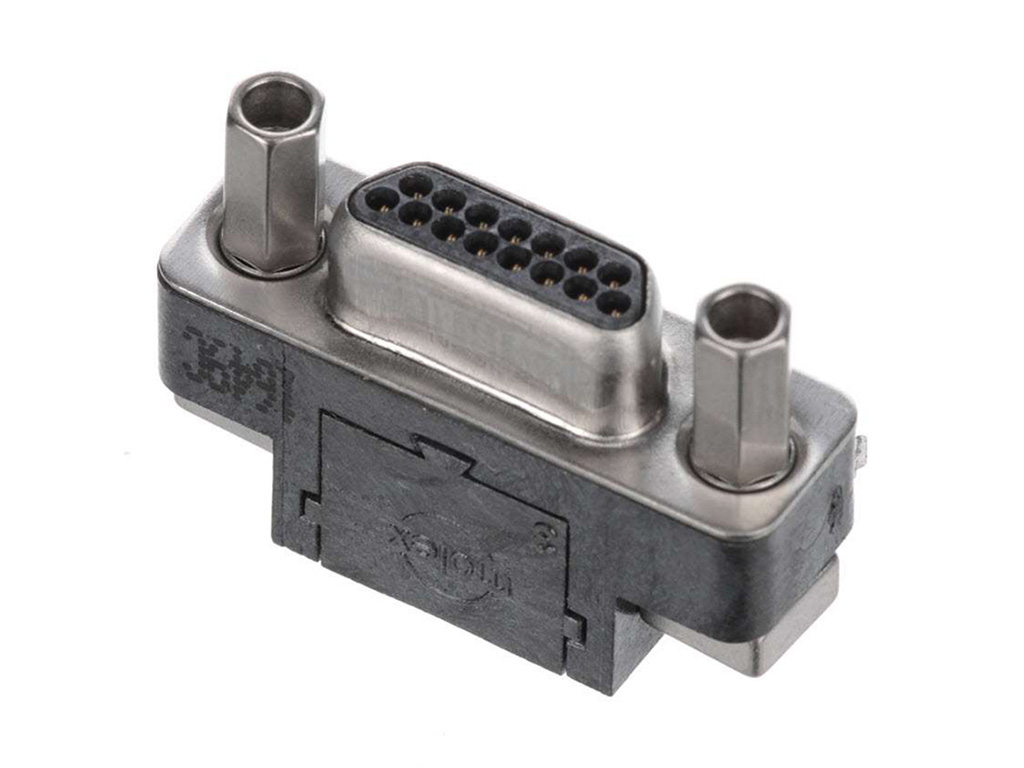

836129020 Commercial Micro-D by Molex
1.27mm Pitch Commercial Micro-D, PCB Mount, Right-Angle Plug, 15 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
83612-9020,
0836129020 |
Where to Buy
Prices starting from US$6.89
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$11.84
|
792
in stock
|
Buy Now |
|
RS
from US$13.87
|
2
in stock
|
Buy Now |
|
Rutronik
from US$10.24
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$12.13
|
0
in stock
|
Buy Now |
|
Avnet America
from US$12.91
|
0
in stock
|
Buy Now |
|
TME
from US$10.71
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$12.70
|
0
in stock
|
Buy Now |
|
Compona
from US$6.89
|
0
in stock
|
Buy Now |
|
Conrad
from US$17.26
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$11.44
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$11.62
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$7.71
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$17.11
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Commercial Micro-D |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Shielded | Yes |
| Shield Type | Full Shield |
| Voltage Maximum | 350V AC |
Physical |
|
|---|---|
| Boot Color | N/A |
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Durability Mating Cycles Max | 500 |
| Gender | Plug |
| Lock To Mating Part | Yes |
| Material Plating Mating | Gold |
| Net Weight | 4.567/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Panel Mount | Yes |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.52mm |
| Pc Tail Length | 2.79mm |
| Pitch Mating Interface | 1.27mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.381µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Size Awg | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICRO-D PLG 15P RA W/JACKPOST | TTI Americas |
| Molex 83612-9020 D-Sub Connector | RS |
| 15P D-Sub Micro-D Male 90° | Rutronik |
| Cmd Ra Plug 15 Cir W/Jkpost Rohs Compliant: Yes |Molex 83612-9020 | Newark Electronics |
| Conn Micro D Subminiature Plug 15 POS 1.27mm Solder Right Angle Through Hole | Avnet America |
| Connector: D-Sub | TME |
| CMD RA PLUG 15 CIR W/JKPOST | RS Americas |
| MOLEX 83612-9020 Plug MicroD 15p THT | Compona |
| Molex 836129020 D-SUB Steckverbinder 1 St. | Conrad |
| COMMERCIAL MICRO D PLUG 15POS | TTI Europe |
