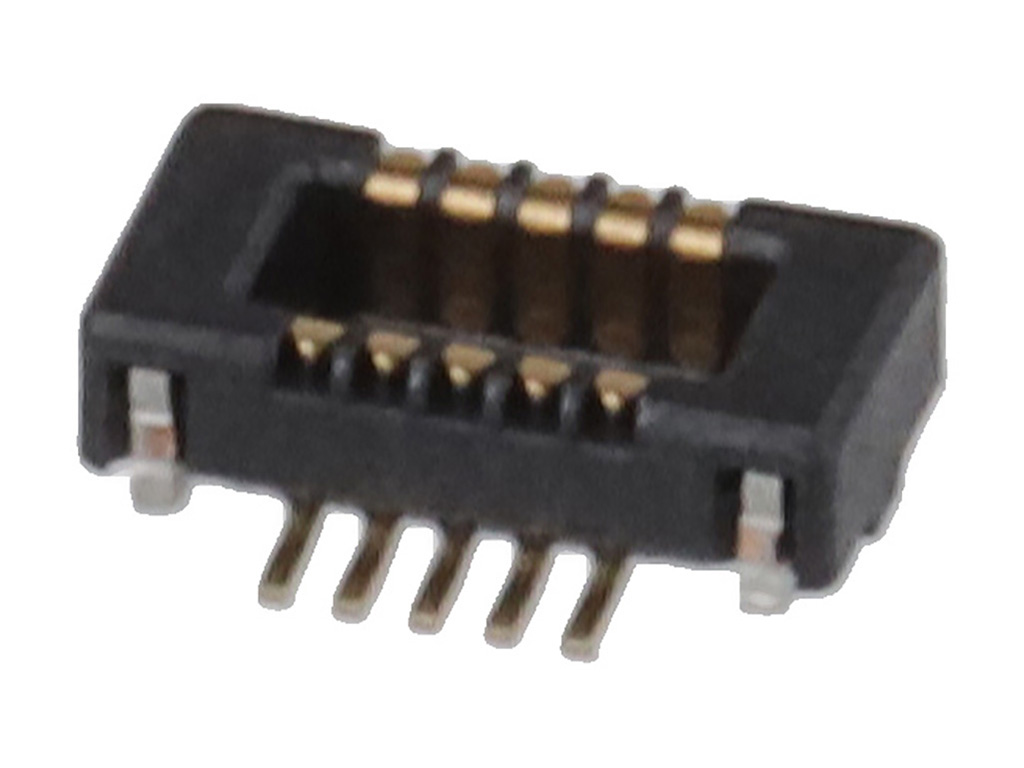

559099872 SlimStack by Molex
SlimStack Board-to-Board Plug, 0.40mm Pitch, J-Bend Series, 0.20µm Gold (Au) Plating, 1.50 or 1.80mm Mated Height, 3.40 or 4.20mm Mated Width, 10 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
55909-9872,
0559099872 |
Where to Buy
Prices starting from US$0.32
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.58
|
7,500
in stock
|
Buy Now |
|
Conrad
from US$0.81
|
7,500
in stock
|
Buy Now |
|
Farnell
from US$0.90
|
7,000
in stock
|
Buy Now |
|
element14
from US$0.81
|
2,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.32
|
14
in stock
|
Buy Now |
|
RS
from US$0.82
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.76
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.45
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.37
|
0
in stock
|
Buy Now |
|
Avnet America
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.3A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 1.50mm |
| Mated Width | 3.40mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 16.130/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.40mm |
| Pitch Termination Interface | 0.40mm |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: PCB to PCB | TME |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 10 Rastermaß: 0.4 mm 559099872 1 St. Tape on Full reel | Conrad |
| MEZZANINE CONN, HDR, 10POS, 2ROW, 0.4MM | Farnell |
| CONN, STACKING, HEADER, 10POS, 2ROW | element14 |
| Conn, Stacking, Header, 10Pos, 2Row | Newark Electronics |
| Molex 55909-9872 PCB Header | RS |
| SLIMSTACK BOARD-TO-BOARD | TTI Europe |
| 0.4 B-TO-B PLUG ASSY EMBS G | Heilind Europe |
| 0.4 B-TO-B PLUG ASSY EMBS | TTI Asia |
| Conn Board to Board PL 10 POS 0.4mm Solder ST SMD Embossed T/R | Avnet America |
