559090474 SlimStack by Molex

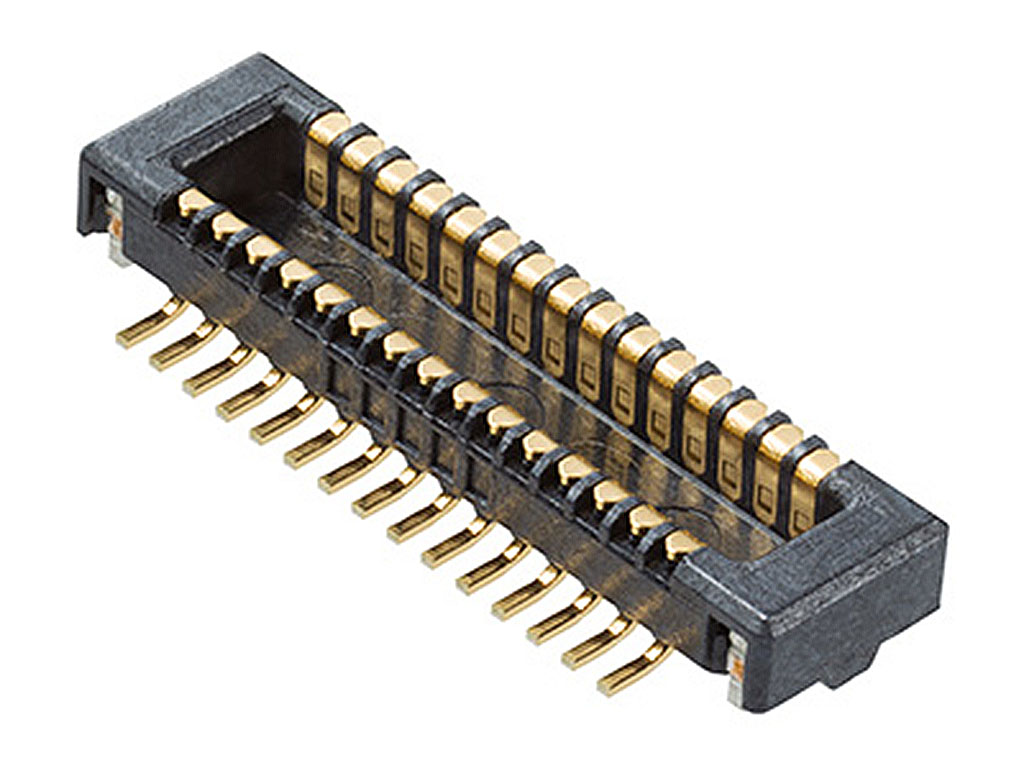

SlimStack Board-to-Board Plug, 0.40mm Pitch, J-Bend Series, 0.20µm Gold (Au) Plating, 1.50 or 1.80mm Mated Height, 3.40 or 4.20mm Mated Width, 40 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
55909-0474,
0559090474 |
Where to Buy
Prices starting from US$0.83
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.80
|
16,640
in stock
|
Buy Now |
|
Farnell
from US$2.03
|
16,640
in stock
|
Buy Now |
|
TTI Americas
from US$3.43
|
2,133
in stock
|
Buy Now |
|
element14
from US$2.12
|
82
in stock
|
Buy Now |
|
RS
from US$1.52
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$2.18
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.80
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.83
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.68
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.3A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 40 |
| Circuits Maximum | 40 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Mated Height | 1.50mm, 1.80mm |
| Mated Width | 3.40mm, 4.20mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 38.620/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pitch Mating Interface | 0.40mm |
| Pitch Termination Interface | 0.40mm |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Stiftgehäuse-Platine 559090474 1 St. | Conrad |
| MEZZANINE CONN, HDR, 40POS, 2ROW, 0.4MM | Farnell |
| .4MM PLG 40P VT SMT | TTI Americas |
| Molex 55909-0474 Header | RS |
| Mezzanine Conn, Hdr, 40Pos, 2Row, 0.4Mm | Newark Electronics |
| 0.4 BTB PLG ASSY J-BENDTL 40C TEMBSTPPKG | Heilind Americas |
