555600247 SlimStack by Molex

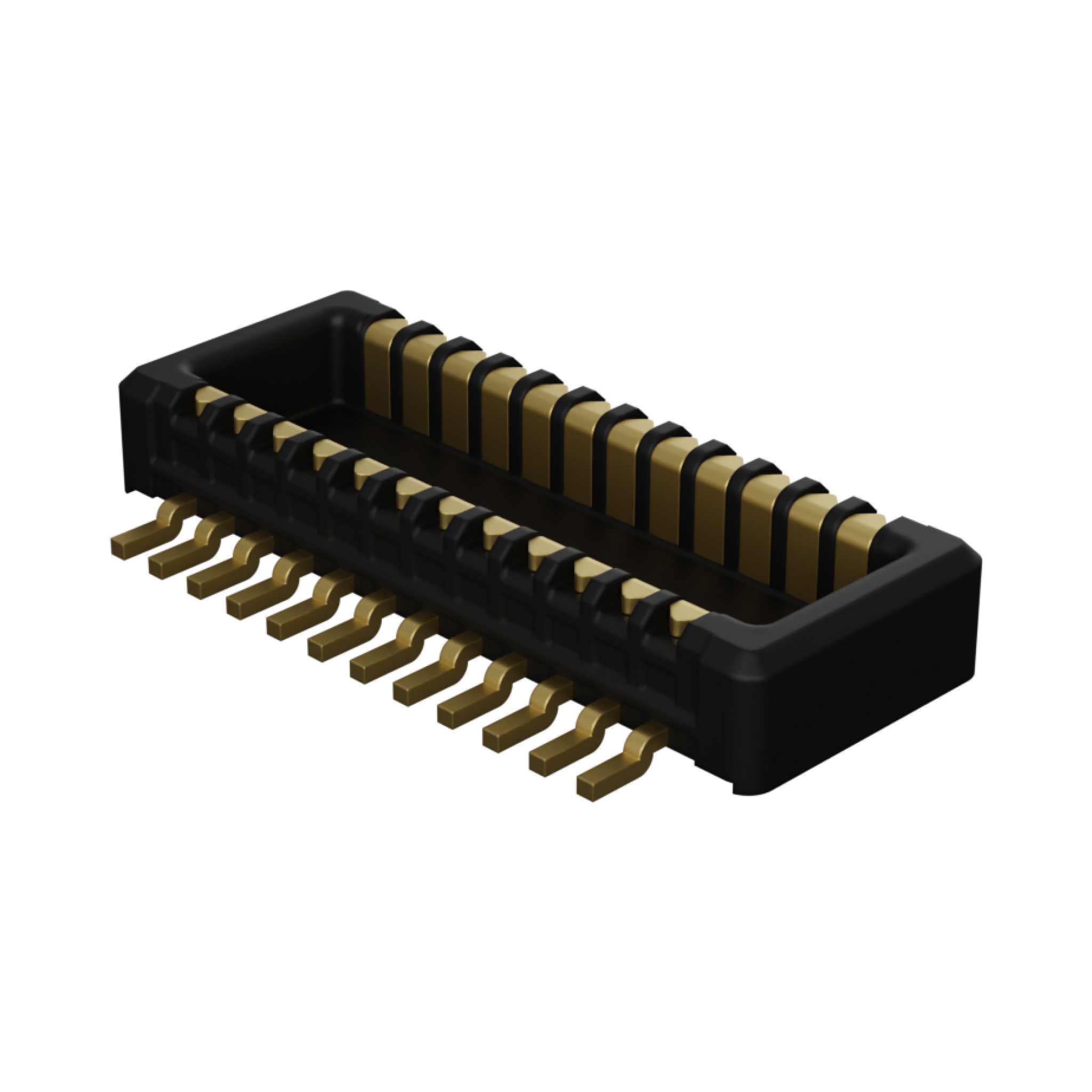

0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 1.50mm Stack Height, 24 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
55560-0247,
0555600247 |
Where to Buy
Prices starting from US$0.55
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.98
|
30,000
in stock
|
Buy Now |
|
Conrad
from US$0.61
|
29,509
in stock
|
Buy Now |
|
Newark Electronics
from US$1.19
|
6,000
in stock
|
Buy Now |
|
element14
from US$1.13
|
6,000
in stock
|
Buy Now |
|
TTI Americas
from US$1.97
|
2,360
in stock
|
Buy Now |
|
RS
from US$1.03
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.04
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.55
|
0
in stock
|
Buy Now |
|
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board, Signal |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 24 |
| Circuits Maximum | 24 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Mated Height | 1.50mm |
| Mated Width | 6.00mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 34.016/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pc Tail Length | 0.74mm |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.254µm |
| Plating Min Termination | 0.102µm |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
