547220204 SlimStack by Molex

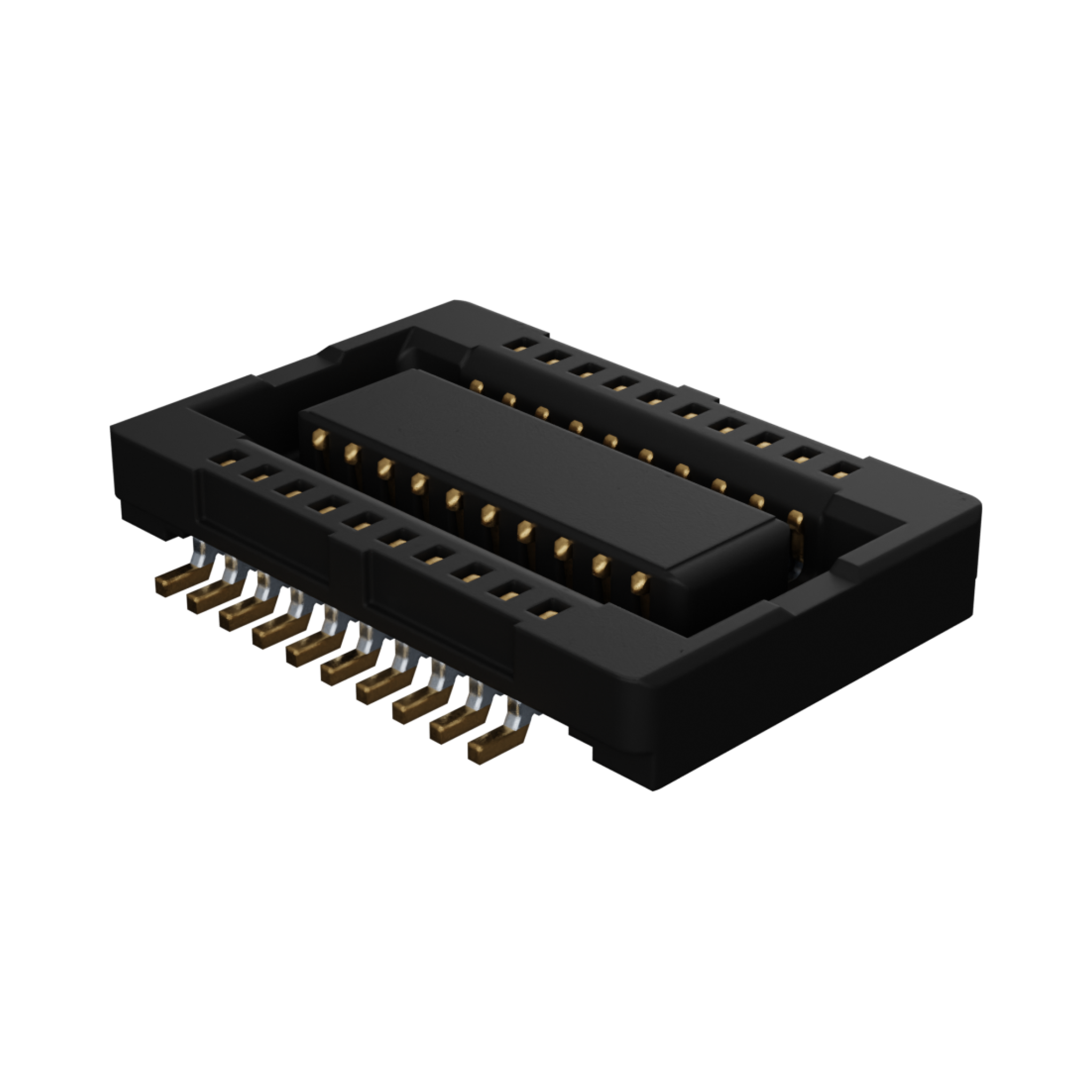

0.50mm Pitch SlimStack Receptacle, Surface Mount, Dual Row, Vertical, 1.50mm Stacking Height, Lower Circuit Size Version, 20 Circuits, Gold Plating with Nickel Barrier Plating Between Contact and Tail
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
54722-0204,
0547220204 |
Where to Buy
Prices starting from US$0.09
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$1.17
|
7,892
in stock
|
Buy Now |
|
Farnell
from US$1.30
|
7,892
in stock
|
Buy Now |
|
TTI Europe
from US$0.47
|
3,000
in stock
|
Buy Now |
|
TME
from US$0.46
|
2,843
in stock
|
Buy Now |
|
Newark Electronics
from US$0.09
|
2,800
in stock
|
Buy Now |
|
RS
from US$0.46
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.19
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.54
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.77
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Mated Height | 1.50mm |
| Mated Width | 6.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 70.201/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 0.50mm |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
