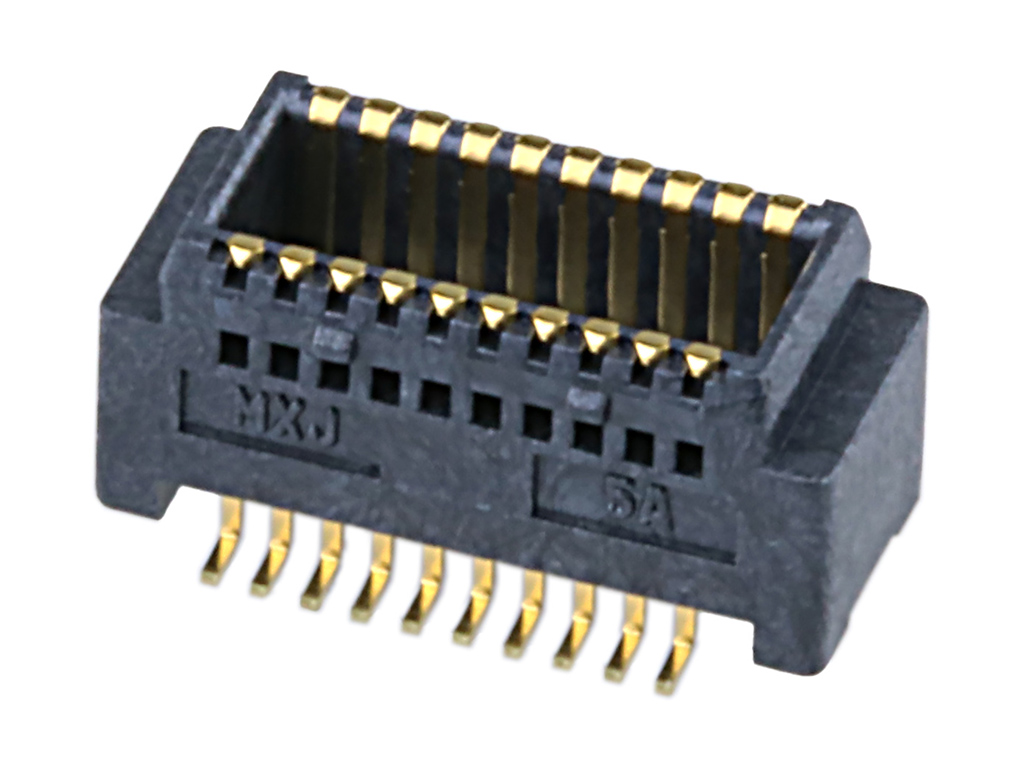

539160208 SlimStack by Molex
0.50mm Pitch SlimStack Plug, Surface Mount, Dual Row, Vertical, 4.00mm Stack Height, without Solder Tabs, 20 Circuits, without Vacuum Pick-up Tape
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
53916-0208,
0539160208 |
Where to Buy
Prices starting from US$1.31
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.90
|
21,000
in stock
|
Buy Now |
|
Conrad
from US$3.08
|
21,000
in stock
|
Buy Now |
|
Farnell
from US$2.07
|
18,900
in stock
|
Buy Now |
|
TTI Americas
from US$1.69
|
7,500
in stock
|
Buy Now |
|
element14
from US$1.75
|
1,500
in stock
|
Buy Now |
|
RS
from US$1.93
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.53
|
0
in stock
|
Buy Now |
|
TME
from US$1.79
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.54
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.52
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.75
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.31
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
|
|
TTI Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Mated Height | 4.00mm |
| Mated Width | 5.40mm |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Net Weight | 87.937/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.254µm |
| Plating Min Termination | 0.102µm |
| Polarized To Pcb | No |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 0.5 B/B Plug Overmold E-T 539160208 |Molex 53916-0208 | Newark Electronics |
| Molex Mezzanine-Steckverbinder Polzahl Gesamt 20 Rastermaß: 0.5 mm 539160208 1 St. Tape on Full reel | Conrad |
| MEZZANINE CONN, HDR, 20POS, 2ROW, 0.5MM | Farnell |
| .5MM PLG 02X10P VT SMT NO TAPE | TTI Americas |
| CONNECTOR, STACKING, HEADER, 20POS, 2ROW | element14 |
| Molex 53916-0208 PCB Header | RS |
| Conn Board to Board PL 20 POS 0.5mm Solder ST SMD Embossed T/R | Avnet America |
| Connector: PCB to PCB | TME |
| PLUG 0.5MM, SM, DUAL ROW, VERTICAL,20W | RS Americas |
| 0.50MM PITCH SLIMSTACK PLUG | TTI Europe |
| 0.5 B/B PLUG OVERMOLD E-T 539 60208 | Heilind Americas |
| 0.5 B/B PLUG OVERMOLD E-T | TTI Asia |
