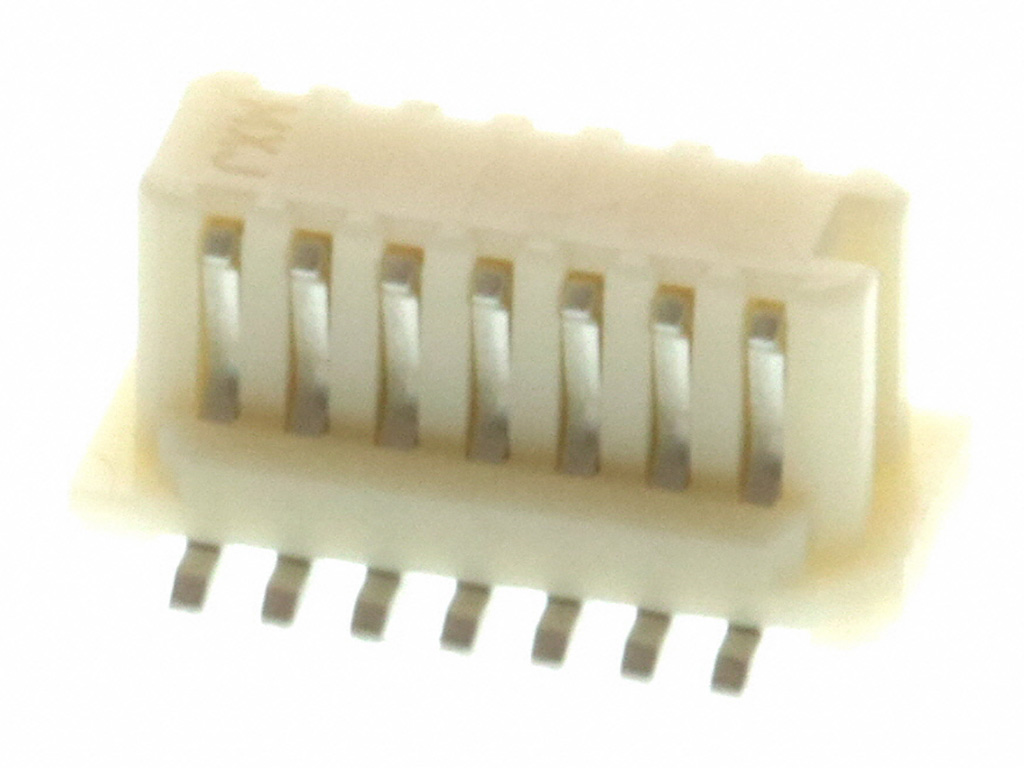

SlimStack Board-to-Board Connector, 0.80mm Pitch, Rigid Type Receptacle, 4.50 or 5.65mm Mated Height, Vertical, 14 Circuits, without Boss
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
52465-1471,
0524651471 |
Where to Buy
Prices starting from US$0.66
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$1.41
|
269,269
in stock
|
Buy Now |
|
Farnell
from US$1.14
|
242,750
in stock
|
Buy Now |
|
TME
from US$0.86
|
12,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.81
|
11,000
in stock
|
Buy Now |
|
CoreStaff
from US$0.72
|
8,000
in stock
|
Buy Now |
|
Newark Electronics
from US$1.30
|
1,000
in stock
|
Buy Now |
|
element14
from US$1.11
|
1,000
in stock
|
Buy Now |
|
RS
from US$1.00
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.95
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.71
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.66
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Circuits Loaded | 14 |
| Circuits Maximum | 14 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| Glow Wire Capable | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Mated Height | 4.50mm, 5.65mm |
| Mated Width | 4.70mm, 5.10mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 148.200/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 0.80mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
