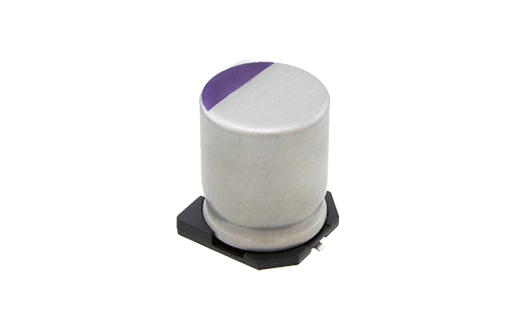

35SVPF22M Polymer Capacitors by Panasonic
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Where to Buy
Prices starting from US$0.37
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$0.88
|
15,895
in stock
|
Buy Now |
|
Future Electronics
from US$0.72
|
12,000
in stock
|
Buy Now |
|
Farnell
from US$0.77
|
8,341
in stock
|
Buy Now |
|
element14
from US$0.80
|
8,312
in stock
|
Buy Now |
|
Avnet America
from US$0.38
|
4,000
in stock
|
Buy Now |
|
TME
from US$0.48
|
484
in stock
|
Buy Now |
|
TTI Americas
from US$1.55
|
240
in stock
|
Buy Now |
|
Newark Electronics
from US$1.00
|
157
in stock
|
Buy Now |
|
Rutronik
from US$0.52
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.04
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.73
|
0
in stock
|
Buy Now |
|
Schukat Electronic
from US$0.53
|
0
in stock
|
Buy Now |
|
Buerklin
from US$0.70
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.51
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.37
|
0
in stock
|
Buy Now |
|
Ozdisan
from US$0.67
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Rated Voltage (DC) (V) | 35 |
|---|---|
| Body Type | Surface mount type (vertical mount style) |
| Capacitance (µF) | 22 |
| Polarity Type | Polar |
| E.S.R.-1 (Max. Value) (mΩ) | 35 |
| Rated Ripple Current (Rms) (mA) | 2600 |
| Rated Voltage (V) | 35 |
| Leakage Current (Max.) (μA) | 154 |
| Operating Temperature Range (°C) | -55 to 105 |
| Tolerance on Capacitance (%) | -20 to 20 |
| Endurance (h) | 5000 |
| Temperature Range (°C) | -55 to 105 |
| Body Diameter (mm) | 6.3 |
| Height (Max) (mm) | 6 |
| [email protected] | 5000@105°C |
| Size Code | C6 |
| Rated Ripple Current-1 (mArms) | 2600 |
| Weight (Typ.) (g) | 0.27 |
| Rated Ripple Current-1 (temp.) (°C) | 105 |
| Forming & Packaging Feature | Embossed carrier taping (reel packing) |
| Rated Ripple Current-1 (freq.) (kHz) | 100 |
| ESR (mΩ) | 35 |
| ESR Frequency (Hz) | 100 |
| Leakage Current [Max.] (μA) | 154 |
| Dissipation Factor [Max.] | 0.12 |
| Body Length (mm) | 5.9 |
| Minimum packaging quantity (piece) | 1000 |
| Weight [Typ.] (g) | 0.27 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Panasonic 35SVPF22M Polymer Capacitor | RS |
| SVPF Series 35 V 22 uF ±20% 6.3 x 6 mm SMT Polymer Aluminum Capacitor | Future Electronics |
| CAP, 22UF, 35VDC, ALU POLYMER, SMD | Farnell |
| Polymer Aluminium Electrolytic Capacitor, 22 uF, 35 V, Radial Can - SMD, 0.035 ohm | Avnet America |
| Capacitor: polymer | TME |
| 22UF 35V ESR=35 | TTI Americas |
| Cap, Alu Elec, Polymer, 22Uf, 35V, Smd | Newark Electronics |
| SVPF 22uF 35V 20% 6x6 | Rutronik |
| CAPACITOR, ALUMINUM ORGANIC POLYMER, 35VDC,22UF,35MOHM,6.3X6MM, T&R | RS Americas |
| Panasonic Elektrolyt-Kondensator SMD 22 µF 35 V 20 % (Ø) 6.3 mm 1 St. | Conrad |
| OS-CON SVPF 22uF 35V 6,3x5,9mm | Schukat Electronic |
| Polymer-Kondensator, SMD, 22 µF, 35 V, ±20 %, 35SVPF22M | Buerklin |
| 22UF 35V 6.3X6 SMD | TTI Europe |
| 22UF 35V ESR=35 | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 35SVPF22M?
Additional datasheets, footprints and schematics for 35SVPF22M are listed on our Part Details page. You can also find images and similar parts to 35SVPF22M on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 35SVPF22M on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 35SVPF22M price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 35SVPF22M fall under?
The 35SVPF22M is listed under Capacitors > Polymer Capacitors > OS-CONâ„¢ Aluminum-Polymer > SVPF Series.
Can I view similar or alternative parts?
You can view similar parts to 35SVPF22M when available in the SVPF Series range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 35SVPF22M you can contact the distributor directly for product support, shipping queries etc.
Is the 35SVPF22M RoHS compliant?
This part has not been flagged as RoHS Compliant.
Which authorised distributors for 35SVPF22M have stock available?
Authorised distributors including RS, Future Electronics, Farnell, element14 and Avnet America have stock available or on a lead time for 35SVPF22M.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 35SVPF22M often in real-time on the comparison pages.
What if I can't find stock of 35SVPF22M?
You can fill out our help required form which you can use to request a quote for 35SVPF22M from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
