22052111 KK 254 by Molex

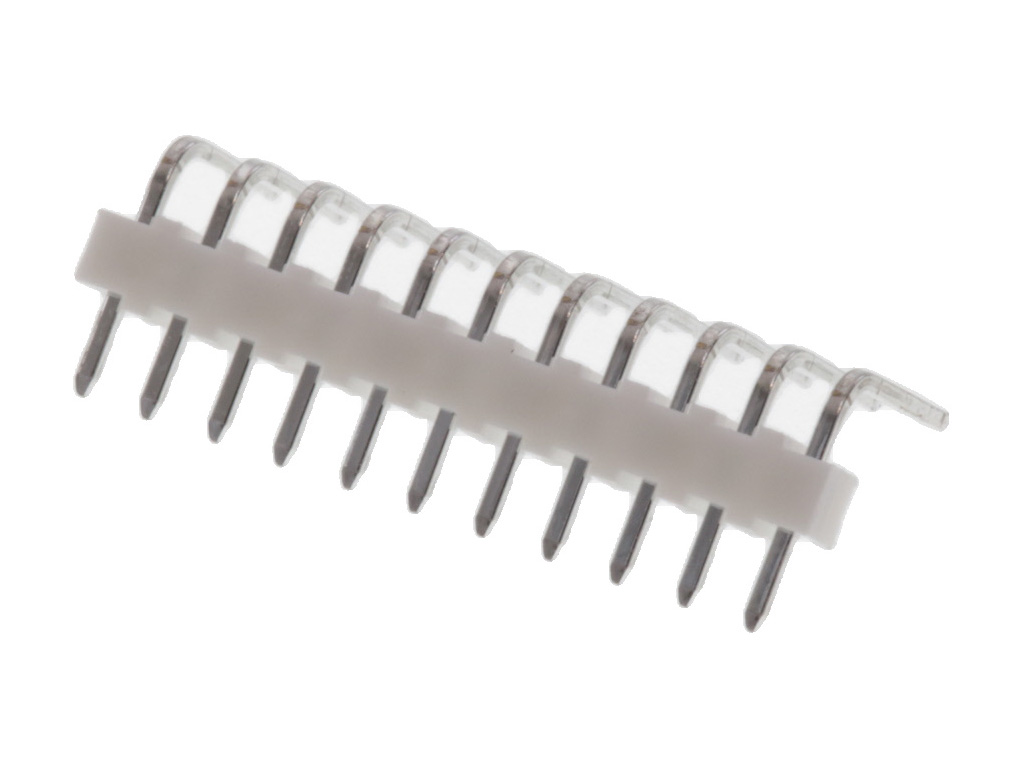

KK 254 Wire-to-Board Header, Single Row, Right-Angle, 11 Circuits, PA Polyamide Nylon, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-05-2111,
0022052111, A-4094-11A197 |
Where to Buy
Prices starting from US$0.48
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.62
|
3,105
in stock
|
Buy Now |
|
Conrad
from US$1.22
|
3,105
in stock
|
Buy Now |
|
Farnell
from US$0.91
|
2,795
in stock
|
Buy Now |
|
RS
from US$1.33
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$0.57
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.49
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.74
|
0
in stock
|
Buy Now |
|
element14
from US$0.68
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.48
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.48
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.48
|
0
in stock
|
Buy Now |
|
EME
from US$0.58
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 11 |
| Circuits Maximum | 11 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 0.887/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.15mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | Yes |
| Temperature Range Operating | See Product Specification |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 22-05-2111 | TME |
| Molex Stiftleiste (Standard) Polzahl Gesamt 11 Rastermaß: 2.54 mm 22052111 1 St. Bulk | Conrad |
| CONNECTORS | Farnell |
| Molex 22-05-2111 PCB Header | RS |
| Header Connector, pcb Mount, recept,11 Contacts, pin,0.1 Pitch, pc Tail Terminal |Molex 22-05-2111 | Newark Electronics |
| Conn Unshrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Bag | Avnet America |
| KK 100 HDR FLAT RTAN 11CKT TIN | RS Americas |
| KK .100 HDR 11P RA SN | TTI Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 22052111?
Additional datasheets, footprints and schematics for 22052111 are listed on our Part Details page. You can also find images and similar parts to 22052111 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 22052111 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 22052111 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 22052111 fall under?
The 22052111 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 22052111 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 22052111 you can contact the distributor directly for product support, shipping queries etc.
Is the 22052111 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 22052111 have stock available?
Authorised distributors including TME, Conrad, Farnell, RS and Newark Electronics have stock available or on a lead time for 22052111.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 22052111 often in real-time on the comparison pages.
What if I can't find stock of 22052111?
You can fill out our help required form which you can use to request a quote for 22052111 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
