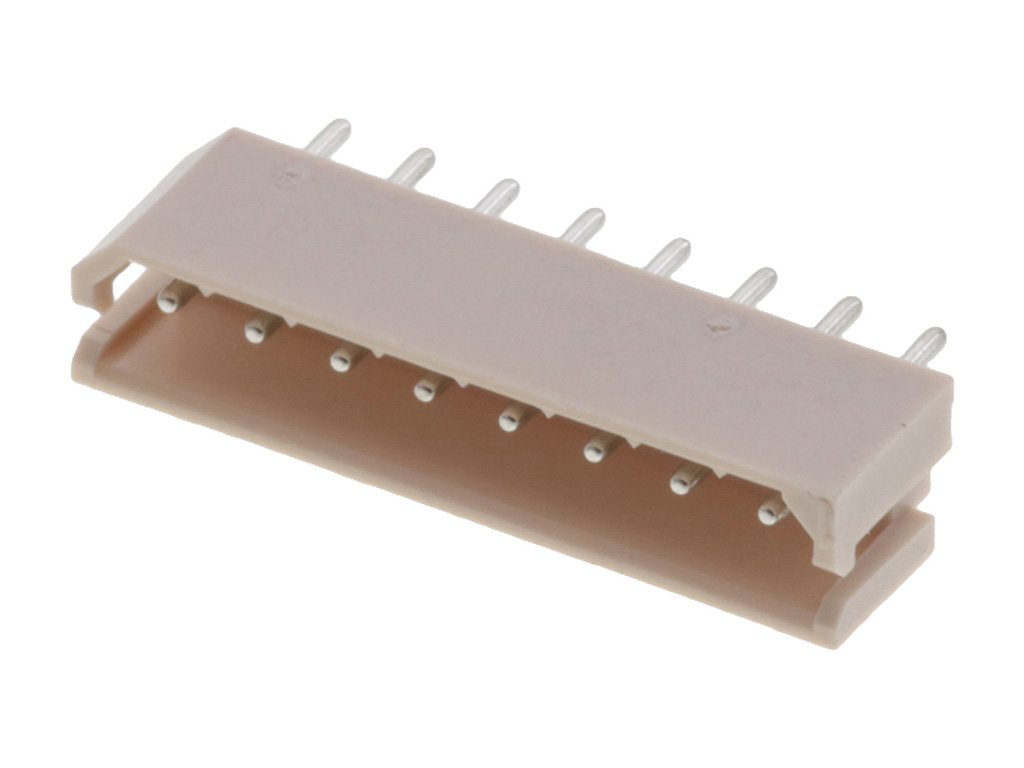

22035085 Mini-SPOX by Molex
2.50mm Pitch, Mini-SPOX PCB Header, Single Row, Vertical, Through Hole, Tin Plating, 8 Circuits, Bag, 3.50mm PC Tail Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-03-5085,
0022035085, 5267-08A |
Where to Buy
Prices starting from US$0.14
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$0.23
|
44,092
in stock
|
Buy Now |
|
TTI Europe
from US$0.16
|
22,900
in stock
|
Buy Now |
|
element14
from US$0.21
|
1,379
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.16
|
1,199
in stock
|
Buy Now |
|
RS
from US$0.36
|
355
in stock
|
Buy Now |
|
TME
from US$0.20
|
331
in stock
|
Buy Now |
|
Rapid Electronics
from US$0.29
|
287
in stock
|
Buy Now |
|
Conrad
from US$0.21
|
287
in stock
|
Buy Now |
|
Avnet Abacus
-
|
38,000
in stock
|
Buy Now |
|
Rutronik
from US$0.19
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.18
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$0.14
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.17
|
0
in stock
|
Buy Now |
|
EME
from US$0.20
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-SPOX |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Natural |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 716.220/mg |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.50mm |
| Pitch Mating Interface | 2.50mm |
| Plating Min Mating | 4.064µm |
| Plating Min Termination | 4.064µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | No |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -55° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONN, HEADER, 8POS, 1ROW, 2.5MM | Farnell |
| 2.50 MM SPOX W-TO-B HEADER | TTI Europe |
| CONNECTOR, HEADER, 8POS, 1ROW, 2.5MM | element14 |
| SPOX .098 HDR 08P VT SN | TTI Americas |
| Molex 22-03-5085 PCB Header | RS |
| Connector: wire-board | TME |
| Molex 22035085 Mini-spox PCB Header 8 Pin Vertical 2.5mm Pitch | Rapid Electronics |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 8 Rastermaß: 2.5 mm 22035085 1 St. Bag | Conrad |
| Pin Header, Signal, 2.5 mm, 1 Rows, 8 Contacts, Through Hole Straight, Mini-SPOX 5267 | Avnet Abacus |
| 08P MINI-SPOX PCB-HEADER SINGLE ROW | Rutronik |
| 8CKT 2.5MM L/P WAFER ASY 526708A | Heilind Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 22035085?
Additional datasheets, footprints and schematics for 22035085 are listed on our Part Details page. You can also find images and similar parts to 22035085 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 22035085 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 22035085 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 22035085 fall under?
The 22035085 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 22035085 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 22035085 you can contact the distributor directly for product support, shipping queries etc.
Is the 22035085 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 22035085 have stock available?
Authorised distributors including Farnell, TTI Europe, element14, TTI Americas and RS have stock available or on a lead time for 22035085.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 22035085 often in real-time on the comparison pages.
What if I can't find stock of 22035085?
You can fill out our help required form which you can use to request a quote for 22035085 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
