22032091 KK 254 by Molex

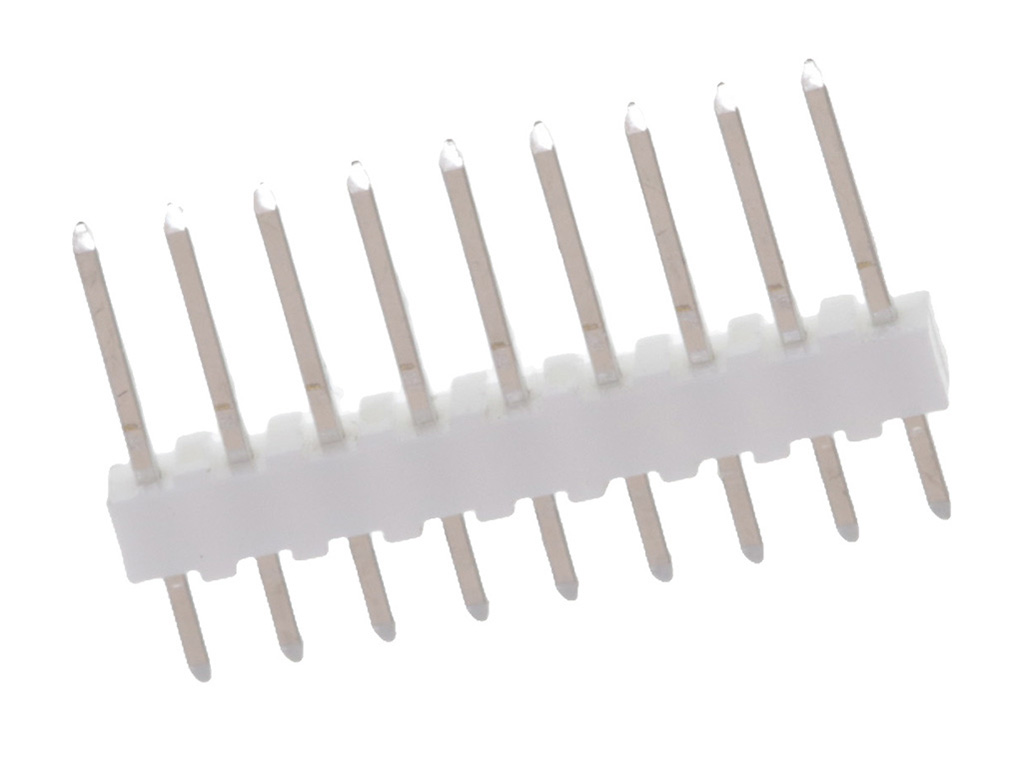

KK 254 Wire-to-Board Header, Single Row, Vertical, 9 Circuits, PA Polyamide Nylon, Tin (Sn) Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
22-03-2091,
0022032091, A-4030-09A197 |
Where to Buy
Prices starting from US$0.11
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.42
|
3,024
in stock
|
Buy Now |
|
Conrad
from US$0.66
|
3,024
in stock
|
Buy Now |
|
Farnell
from US$0.61
|
2,722
in stock
|
Buy Now |
|
element14
from US$0.51
|
2,299
in stock
|
Buy Now |
|
TTI Americas
from US$0.36
|
300
in stock
|
Buy Now |
|
Newark Electronics
from US$0.11
|
6
in stock
|
Buy Now |
|
Lake-View Electronics
-
|
473
in stock
|
Buy Now |
|
RS
from US$0.42
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.40
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.59
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.36
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.33
|
0
in stock
|
Buy Now |
|
EME
from US$0.45
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 254 |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 4.0A |
| Voltage Maximum | 500V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Natural (White) |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Lock To Mating Part | No |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Mounting Style | Through Hole |
| Net Weight | 0.618/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.43mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 5.080µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | Yes |
| Temperature Range Operating | See Product Specification |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 22-03-2091 | TME |
| Molex Stiftleiste (Standard) Polzahl Gesamt 9 Rastermaß: 2.54 mm 22032091 1 St. Bulk | Conrad |
| CONN, HEADER, 9POS, 1ROW, 2.54MM | Farnell |
| CONNECTOR, HEADER, 9POS, 1ROW, 2.54MM | element14 |
| KK .100 HDR 09P VT SN | TTI Americas |
| Connector, Header, 9Pos, 1Row, 2.54Mm | Newark Electronics |
| Molex 22-03-2091 Pin Header | RS |
| Conn Unshrouded Header HDR 9 POS 2.54mm Solder ST Thru-Hole Bag | Avnet America |
| 9 WAY STRAIGHT PCB HEADER,2.54MM PITCH | RS Americas |
| KK 100 HDR FLAT VERT TIN 9CKT | Heilind Americas |
