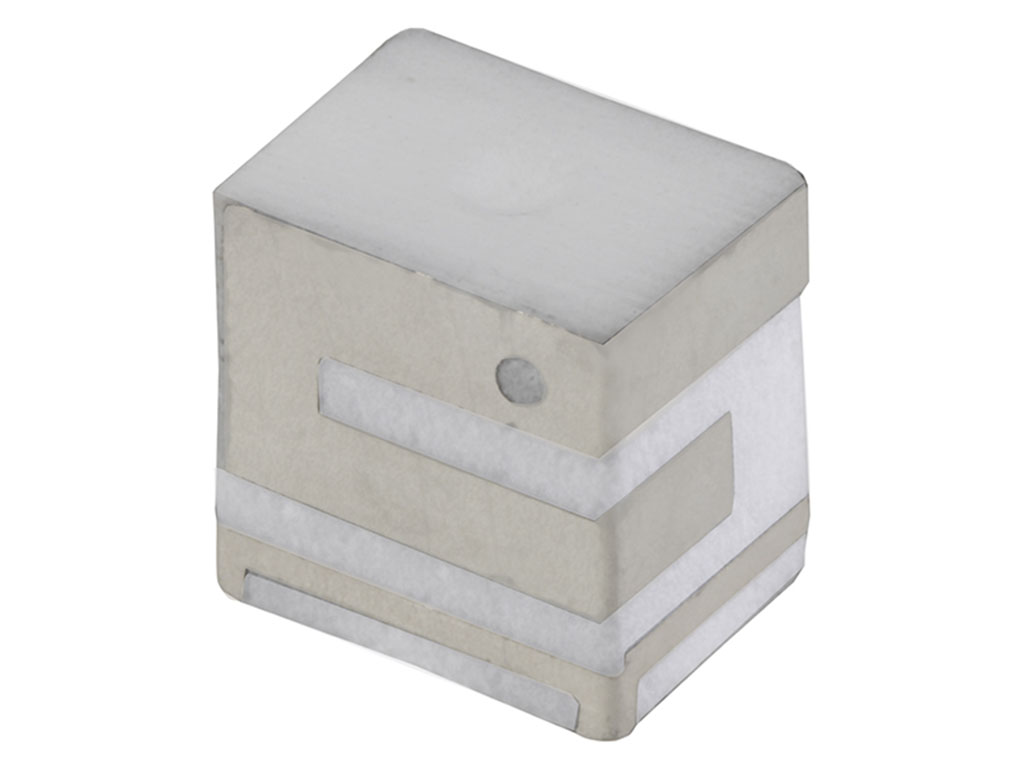

2065140001 2.4/5GHz Ceramic SMT Antenna by Molex
2.4GHz / 5GHz SMT Ceramic Antenna, 4.00mm by 3.00mm
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 206514-0001 |
Where to Buy
Prices starting from US$0.51
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$0.63
|
90,000
in stock
|
Buy Now |
|
Conrad
from US$1,123.45
|
90,000
in stock
|
Buy Now |
|
Farnell
from US$0.77
|
81,000
in stock
|
Buy Now |
|
element14
from US$1.18
|
4,707
in stock
|
Buy Now |
|
Newark Electronics
from US$0.91
|
60
in stock
|
Buy Now |
|
Heilind Americas
from US$0.66
|
40
in stock
|
Buy Now |
|
Avnet America
from US$0.51
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.54
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.65
|
0
in stock
|
Buy Now |
|
Sager
from US$0.63
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.59
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | 2.4/5GHz Ceramic SMT Antenna |
|---|
Electrical |
|
|---|---|
| Band1f End Mhz | 2483.5 |
| Band1f Start Mhz | 2400 |
| Band2f End Mhz | 5850 |
| Band2f Start Mhz | 5150 |
| Electrical Connectivity | SMD |
| Peak Gain Dbi | 3.5 @ 2.4 GHz, 6.2 @ 5 GHz |
| Return Loss S11db | < -5, < -8 |
| Total Efficiency | >75% |
Physical |
|
|---|---|
| Cable Length | N/A |
| Length | 4.00mm |
| Mounting Style | Surface Mount |
| Net Weight | 0.139/g |
| Polarization | Linear |
| Radiation Pattern | Omnidirectional |
| Thickness | 4.00mm |
| Width | 3.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Antenna | TME |
| Molex 2065140001 Antenne 1500 St. Tape on Full reel | Conrad |
| ANTENNAS - DUAL BAND CHIP | Farnell |
| WI-FI ANTENNA, 2.4GHZ/5GHZ, SMT | element14 |
| Ceramic Smt Antenna, 2.4/5Ghz | Newark Electronics |
| 2.4/5GHZ SMT ANTENNA CERAMIC,4.0MM X 3.0MM | Heilind Americas |
| Chip Antenna, Dual Band, Linear, 2.4 GHz to 2.48 GHz, 5.15 GHz to 5.85 GHz, Surface Mount | Avnet America |
| CERAMIC MONOPOLE ANTENNA, 2.4/5GHZ, 206514 SERIES | RS Americas |
| 2.4/5GHZ CERAMIC ANTENNA | TTI Europe |
| Antennas 2.4GHZ/5GHZ CERAMIC ANTENNA | Sager |
