2032634385 Sentrality by Molex

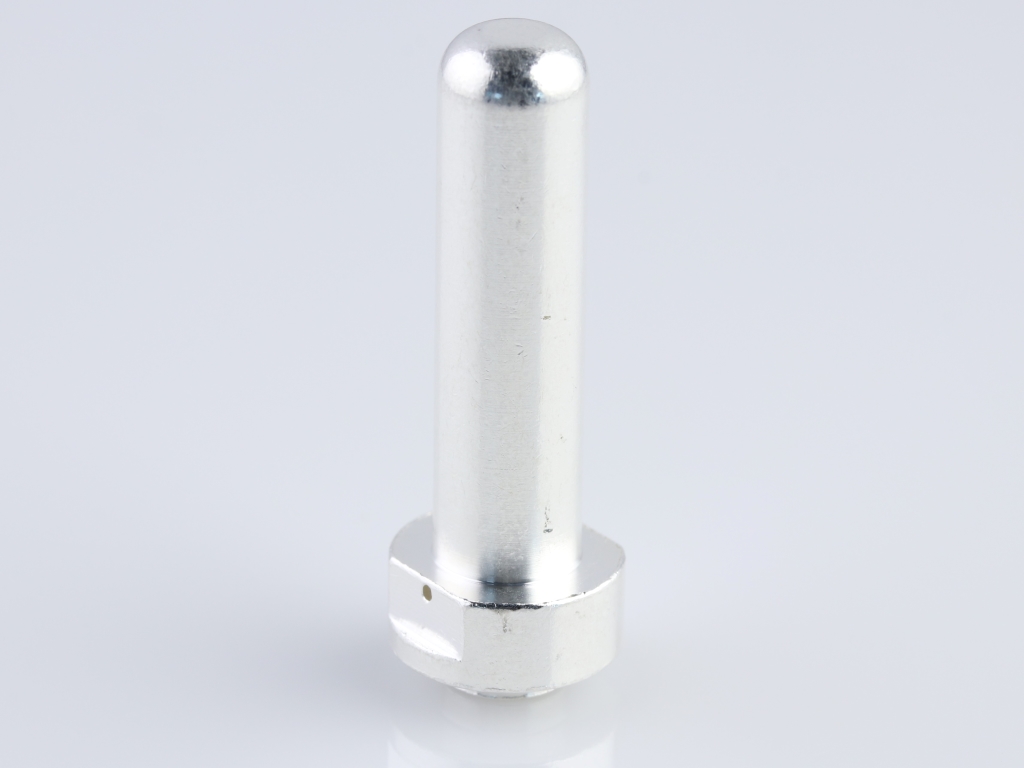

Sentrality 8.00mm Screw Mount Pin, 30.65mm Engagement Length, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 203263-4385 |
Where to Buy
Prices starting from US$3.57
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$4.03
|
2,338
in stock
|
Buy Now |
|
TME
from US$4.99
|
2,338
in stock
|
Buy Now |
|
Farnell
from US$5.15
|
2,105
in stock
|
Buy Now |
|
RS
from US$4.22
|
0
in stock
|
Buy Now |
|
element14
from US$5.03
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$3.57
|
0
in stock
|
Buy Now |
|
Sager
from US$3.80
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.74
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$4.03
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Sentrality |
|---|---|
| Application | Board-to-Board, Busbar-to-Board, Busbar-to-Busbar |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 200.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 1 |
| Circuits Maximum | 1 |
| Diameter | 8.00mm |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Height Above Board | 30.65mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Silver |
| Material Plating Termination | Silver |
| Net Weight | 16.361/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Retention | No |
| Pitch Mating Interface | N/A |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Screw Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Sentrality 8.00Mm Screw Mount Pin In Bag 30.65Mm |Molex 203263-4385 | Newark Electronics |
| 203263-4385 | TME |
| RECT PWR CONTACT, PIN, SCREW | Farnell |
| Molex 203263-4385 PCB Pin | RS |
| CONTACT, PIN, SCREW, COPPER ALLOY | element14 |
| CST 8MM STD MALE TERMINAL | TTI Americas |
| Pin & Socket Connectors CST 8MM STD MALE TERMINAL | Sager |
| 8MM CST MALE SCREWED DOWN TERMINAL | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 2032634385?
Additional datasheets, footprints and schematics for 2032634385 are listed on our Part Details page. You can also find images and similar parts to 2032634385 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 2032634385 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 2032634385 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 2032634385 fall under?
The 2032634385 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 2032634385 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 2032634385 you can contact the distributor directly for product support, shipping queries etc.
Is the 2032634385 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 2032634385 have stock available?
Authorised distributors including Newark Electronics, TME, Farnell, RS and element14 have stock available or on a lead time for 2032634385.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 2032634385 often in real-time on the comparison pages.
What if I can't find stock of 2032634385?
You can fill out our help required form which you can use to request a quote for 2032634385 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
