1722981112 Ultra-Fit by Molex

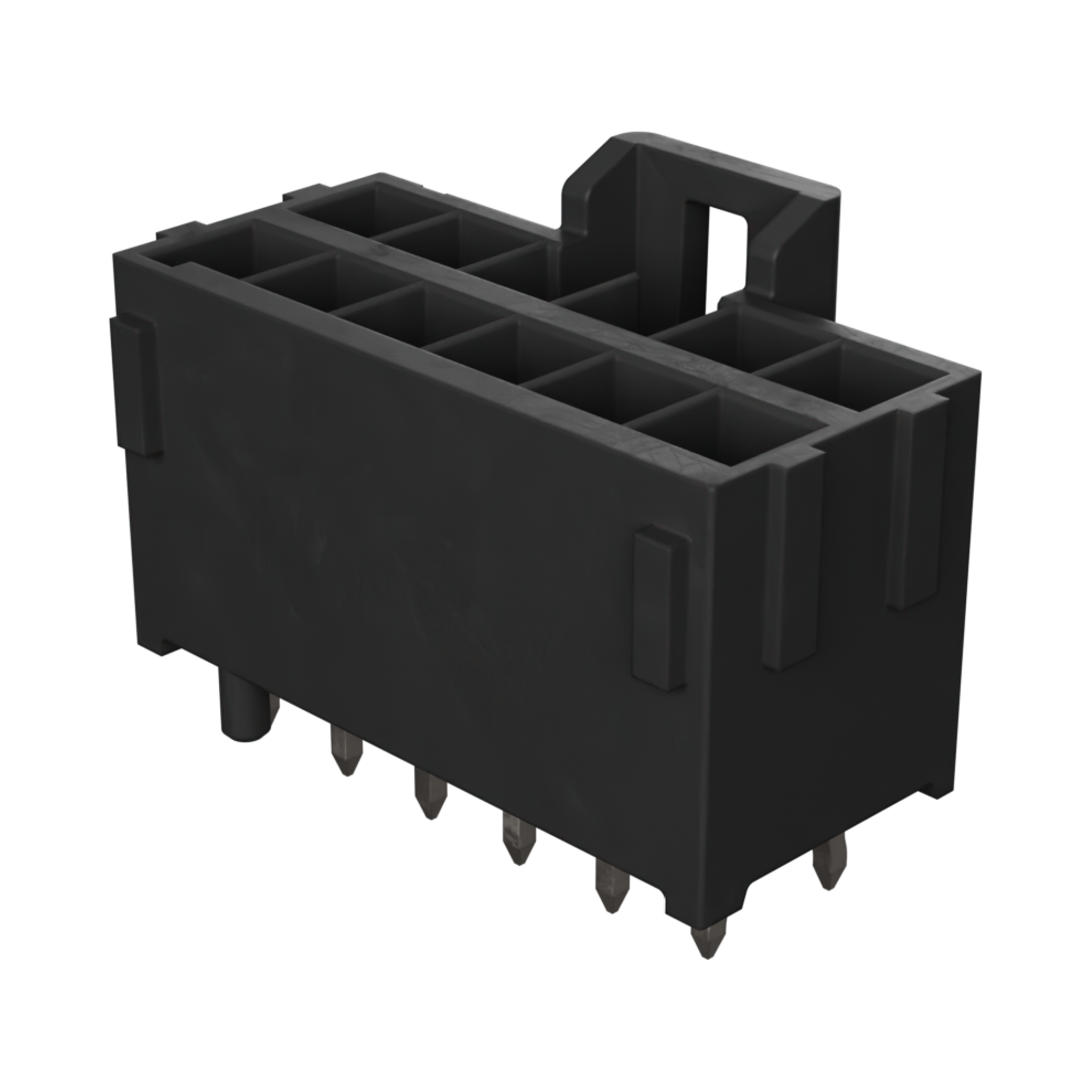

Ultra-Fit Vertical Header, 3.50mm Pitch, Dual Row, 12 Circuits, with Kinked Pins, Tin (Sn) Plating, Black, Glow-Wire Capable, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172298-1112 |
Where to Buy
Prices starting from US$0.91
| Distributor | Stock | ||
|---|---|---|---|
|
Avnet America
from US$0.91
|
1,695
in stock
|
Buy Now |
|
element14
from US$1.68
|
194
in stock
|
Buy Now |
|
TTI Americas
from US$1.12
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.39
|
0
in stock
|
Buy Now |
|
Sager
from US$1.07
|
0
in stock
|
Buy Now |
|
Heilind Europe
from US$1.21
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Ultra-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 10.3A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 2.786/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 3.50mm |
| Pitch Termination Interface | 3.50mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Ultra-Fit Vertical Header with Kinked Pins 3.5mm Pitch Dual Row 12 Circuits 1.524?m Tin Plating Glow Wire Capable Black | Avnet America |
| CONNECTOR, HEADER, 12POS, 2ROW, 3.5MM | element14 |
| ULTRA-FIT HDR 02X06P VT SN | TTI Americas |
| ULTRA-FIT HDR VT DUAL 12CKT | TTI Europe |
| Headers & Wire Housings ULTRA-FIT HDR 02X06P VT SN | Sager |
| ULTRA-FIT HDR VT DUAL K B CKT TIN | Heilind Europe |
| Ultra-Fit Vertical Header with Kinked Pins 3.5mm Pitch Dual Row 12 Circuits 1.524�m Tin Plating Glow Wire Capable Black | Avnet Abacus |
