1722981108 Ultra-Fit by Molex

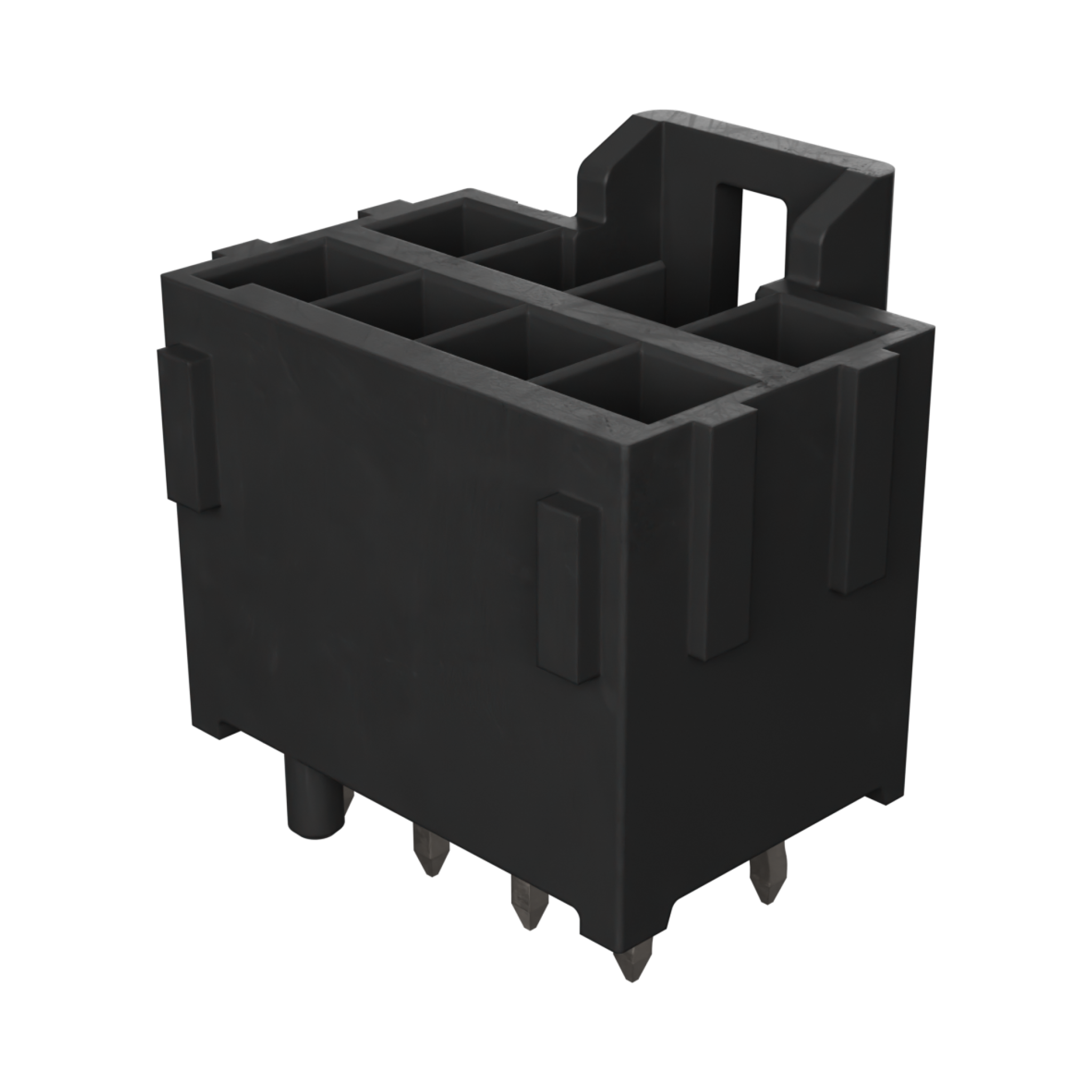

Ultra-Fit Vertical Header, 3.50mm Pitch, Dual Row, 8 Circuits, with Kinked Pins, Tin (Sn) Plating, Black, Glow-Wire Capable, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172298-1108 |
Where to Buy
Prices starting from US$0.56
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.58
|
3,062
in stock
|
Buy Now |
|
element14
from US$0.92
|
537
in stock
|
Buy Now |
|
Farnell
from US$1.01
|
537
in stock
|
Buy Now |
|
Newark Electronics
from US$1.15
|
73
in stock
|
Buy Now |
|
TME
from US$0.86
|
40
in stock
|
Buy Now |
|
Rutronik
from US$0.78
|
0
in stock
|
Buy Now |
|
RS
from US$1.73
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.56
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.14
|
0
in stock
|
Buy Now |
|
Conrad
from US$1.34
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.58
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.70
|
0
in stock
|
Buy Now |
|
Sager
from US$0.61
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.56
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.66
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Ultra-Fit |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 11.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 8 |
| Circuits Maximum | 8 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 1.954/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 3.50mm |
| Pitch Termination Interface | 3.50mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole - Kinked Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| ULTRA-FIT HDR VT DUAL K BLK 08CKT TIN | Heilind Americas |
| Connector, Header, 8Pos, 2Row, 3.5Mm | Newark Electronics |
| Connector: wire-board | TME |
| 08P ULTRAFIT HEADER BLACK TIN 3.50 PITCH | Rutronik |
| Molex 172298-1108 PCB Header | RS |
| Conn Shrouded Header HDR 8 POS 3.5mm Solder ST Thru-Hole Tray Ultra-Fit | Avnet America |
| CONN | RS Americas |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 8 Rastermaß: 3.5 mm 1722981108 1 St. Tray | Conrad |
| ULTRA-FIT HDR 02X04P VT SN | TTI Americas |
| ULTRA-FIT VERTICAL HEADER, | TTI Europe |
| Headers & Wire Housings ULTRA-FIT HDR 02X04P VT SN | Sager |
| ULTRA-FIT HDR VT DUAL K BLK 08 | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1722981108?
Additional datasheets, footprints and schematics for 1722981108 are listed on our Part Details page. You can also find images and similar parts to 1722981108 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1722981108 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1722981108 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1722981108 fall under?
The 1722981108 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 1722981108 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1722981108 you can contact the distributor directly for product support, shipping queries etc.
Is the 1722981108 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1722981108 have stock available?
Authorised distributors including Heilind Americas, element14, Farnell, Newark Electronics and TME have stock available or on a lead time for 1722981108.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1722981108 often in real-time on the comparison pages.
What if I can't find stock of 1722981108?
You can fill out our help required form which you can use to request a quote for 1722981108 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
