1722871102 Ultra-Fit by Molex

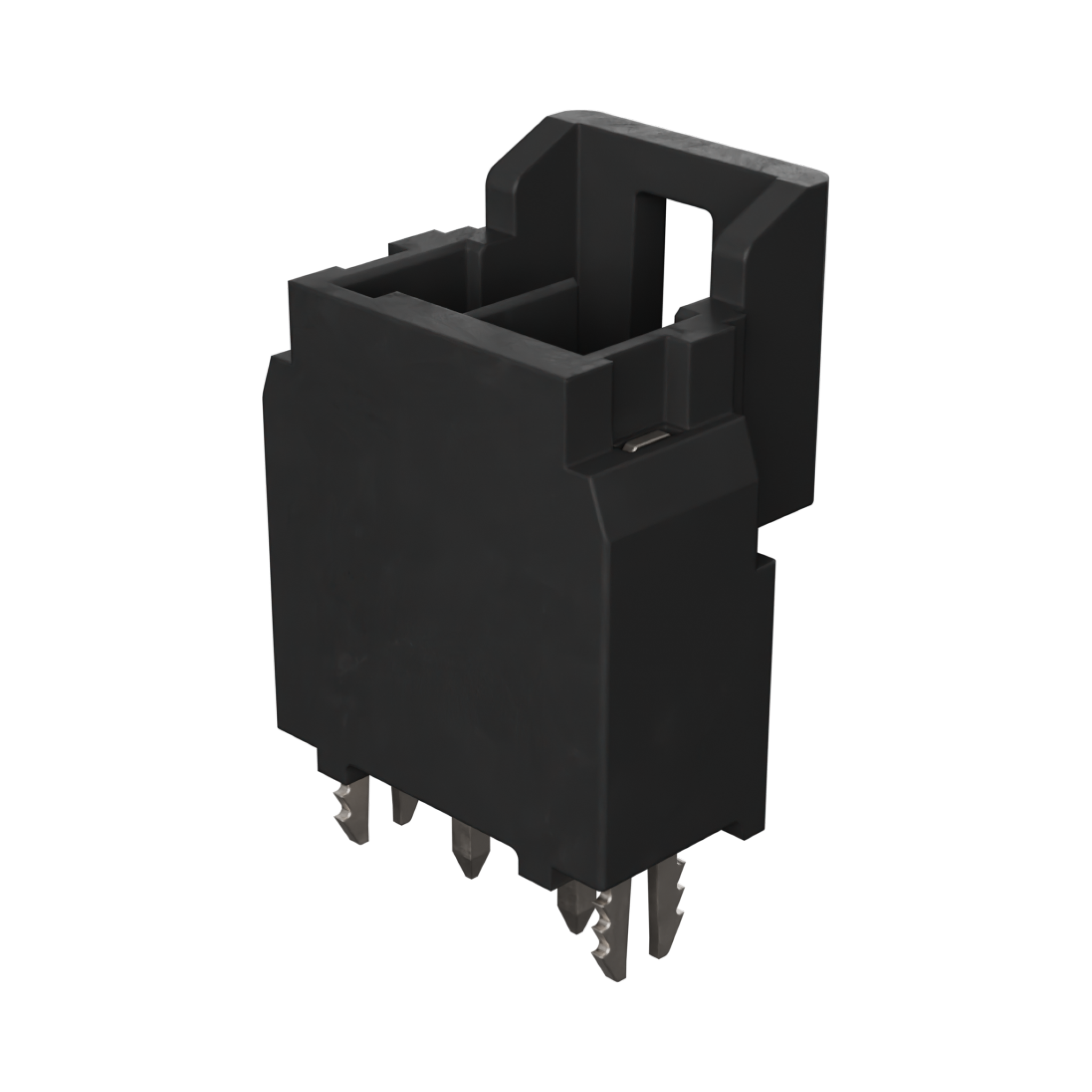

Ultra-Fit Vertical Header, 3.50mm Pitch, Single Row, 2 Circuits, with Solder Clips, Tin (Sn), Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 172287-1102 |
Where to Buy
Prices starting from US$0.13
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.51
|
2,280
in stock
|
Buy Now |
|
Newark Electronics
from US$0.13
|
311
in stock
|
Buy Now |
|
element14
from US$0.63
|
82
in stock
|
Buy Now |
|
Farnell
from US$0.82
|
82
in stock
|
Buy Now |
|
RS
from US$1.07
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.34
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.54
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.87
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.52
|
0
in stock
|
Buy Now |
|
Sager
from US$0.42
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.43
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.48
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.54
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Ultra-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 14.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 0.978/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 3.50mm |
| Pitch Termination Interface | 3.50mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| ULTRA-FIT HDR 01X02P VT SN | TTI Americas |
| Connector, Header, 2Pos, 1Row, 3.5Mm | Newark Electronics |
| CONNECTOR, HEADER, 2POS, 1ROW, 3.5MM | element14 |
| Molex 172287-1102 PCB Header | RS |
| Conn Shrouded Header HDR 2 POS 3.5mm Solder ST Thru-Hole Tray | Avnet America |
| ULTRA-FIT HDR VT SGL F BLK 02CKT TIN | RS Americas |
| Molex Stiftgehäuse-Platine 1722871102 1 St. | Conrad |
| ULTRA-FIT HDR VT SGL F NAT | TTI Europe |
| Headers & Wire Housings ULTRA-FIT HDR 01X02P VT SN | Sager |
| ULTRA-FIT HDR VT SGL F BL KT TIN | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1722871102?
Additional datasheets, footprints and schematics for 1722871102 are listed on our Part Details page. You can also find images and similar parts to 1722871102 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1722871102 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1722871102 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1722871102 fall under?
The 1722871102 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 1722871102 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1722871102 you can contact the distributor directly for product support, shipping queries etc.
Is the 1722871102 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1722871102 have stock available?
Authorised distributors including TTI Americas, Newark Electronics, element14, Farnell and RS have stock available or on a lead time for 1722871102.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1722871102 often in real-time on the comparison pages.
What if I can't find stock of 1722871102?
You can fill out our help required form which you can use to request a quote for 1722871102 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
