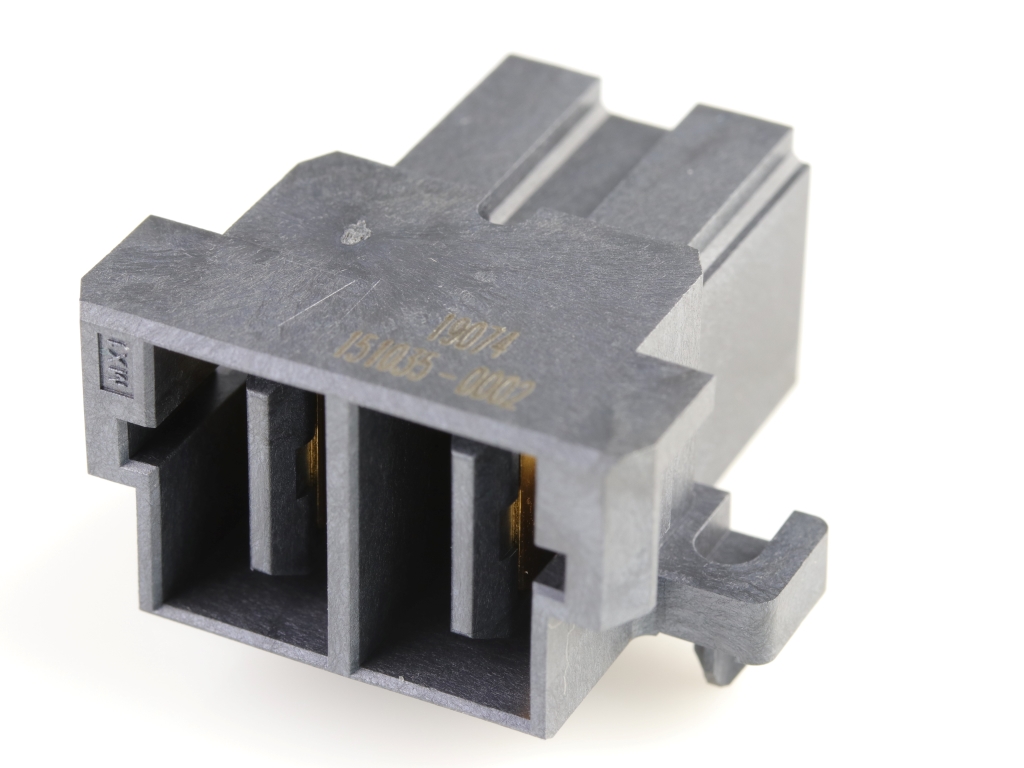

1510350002 EXTreme Guardian by Molex
11.00mm Pitch EXTreme Guardian Power Plug, Right-Angle, Gold (Au) Plating, 3.86mm Tail Length, 2 Circuits, with Peg
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 151035-0002 |
Where to Buy
Prices starting from US$11.56
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$15.31
|
1,040
in stock
|
Buy Now |
|
Newark Electronics
from US$20.70
|
27
in stock
|
Buy Now |
|
element14
from US$17.70
|
27
in stock
|
Buy Now |
|
Farnell
from US$20.96
|
27
in stock
|
Buy Now |
|
TME
from US$14.69
|
13
in stock
|
Buy Now |
|
Conrad
from US$17.18
|
13
in stock
|
Buy Now |
|
Avnet America
from US$12.31
|
0
in stock
|
Buy Now |
|
RS Americas
from US$22.07
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$12.92
|
0
in stock
|
Buy Now |
|
Sager
from US$15.59
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$15.34
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$11.56
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$19.19
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | EXTreme Guardian |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 80.0A |
| Voltage Maximum | 600V AC/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 17.089/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Thickness Recommended | 2.36mm |
| Pc Tail Length | 3.86mm |
| Pitch Mating Interface | 11.00mm |
| Plating Min Mating | 0.076µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| EXTREME GUARDIAN II | TTI Americas |
| Connector, Header, 2Pos, 1Row, 11Mm | Newark Electronics |
| CONNECTOR, HEADER, 2POS, 1ROW, 11MM | element14 |
| Connector: wire-board | TME |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 2 Rastermaß: 11 mm 1510350002 1 St. Tray | Conrad |
| 151035-0002 | RS Americas |
| GUARDIAN II RA PLUG 0.76AU 3CK | TTI Europe |
| Power to the Board EXTREME GUARDIAN II | Sager |
| GUARDIAN II RA PLUG 0.76A | Heilind Americas |
