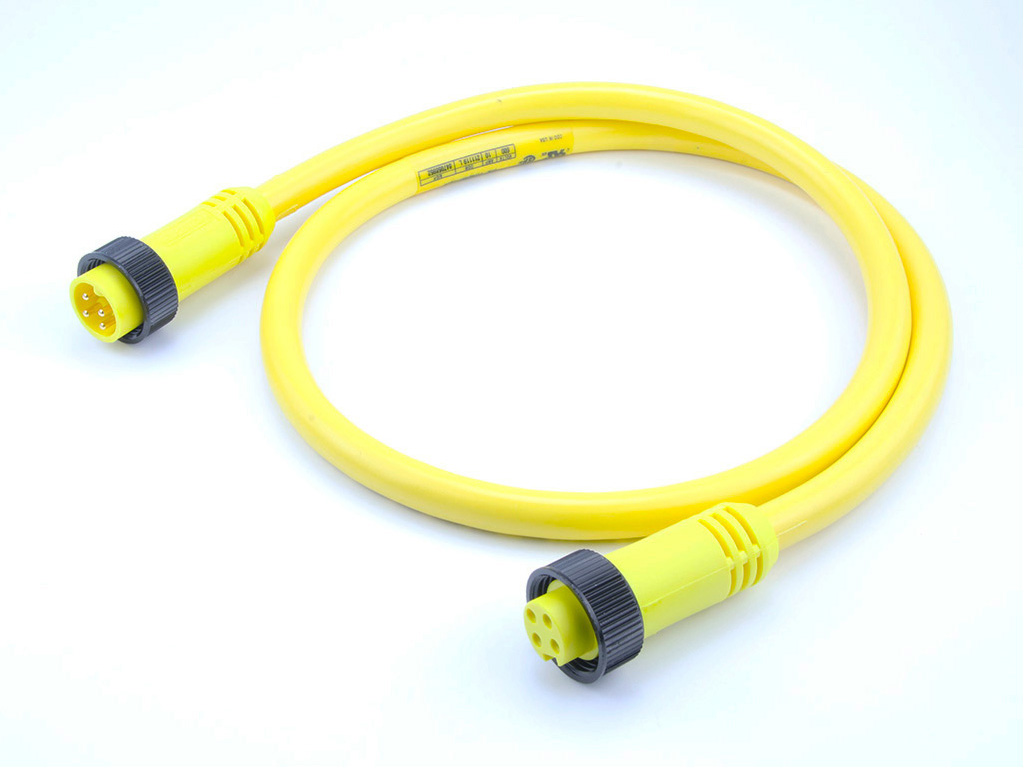

1300100533 Mini-Change by Molex
Mini-Change A-Size Double-Ended Cordset, 4 Poles, Male (Straight) to Female (Straight), 16 AWG, Yellow PVC Cable, 3.66m (12.0') Length
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
130010-0533,
114020A01F120 |
Where to Buy
Prices starting from US$54.74
Specifications
| Product Name | Mini-Change |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 10.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Cable Diameter | 10.67mm (.420") |
| Cable Length | 3.66m (12.0') |
| Color Cable Jacket | Yellow |
| Connector End A | Mini-Change |
| Connector End B | Mini-Change |
| Coupling Style | Threaded |
| Gender | Female-Male |
| Key Way | Single |
| Led Indicator | None |
| Material Cable Jacket | PVC |
| Material Connector Body | TPE |
| Material Contact | Brass |
| Material Coupling Nut | Black Epoxy Coated Zinc |
| Material Plating Mating | Gold |
| Net Weight | 322.000/g |
| Orientation | Straight to Straight |
| Poles | 4 |
| Temperature Range Operating | -20° to +105°C |
| Wire Cable Type | STOOW |
| Wire Size Awg | 16 |
Last 6 months Inventory & Pricing History
1300100533 Leads by Molex
SENSOR CORD 4P PLUG-RCPT 3.7M
| Status: | Unknown |
|---|---|
| Series: | - |
| RoHS: | Unknown |
Specifications
| Connector Type A | Circular 4 Position Plug |
|---|---|
| Connector Type B | Circular 4 Position Receptacle |
| Cable Length - Imperial | 12ft |
| Cable Length - Metric | 3.66m |
| Jacket Color | Yellow |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| SENSOR | Farnell |
| SENSOR CORD, 4P, PLUG-RCPT, 3.7M | element14 |
| MINI-CHANGE A DBLE-END CORDSET | TTI Americas |
| Sensor Cables / Actuator Cables MC 4P MFE 12' 16/4 PVC | Sager |
| MC 4P MFE 12' 16/4 PVC 114020A01F120 | Heilind Europe |
