10897200 C-Grid by Molex

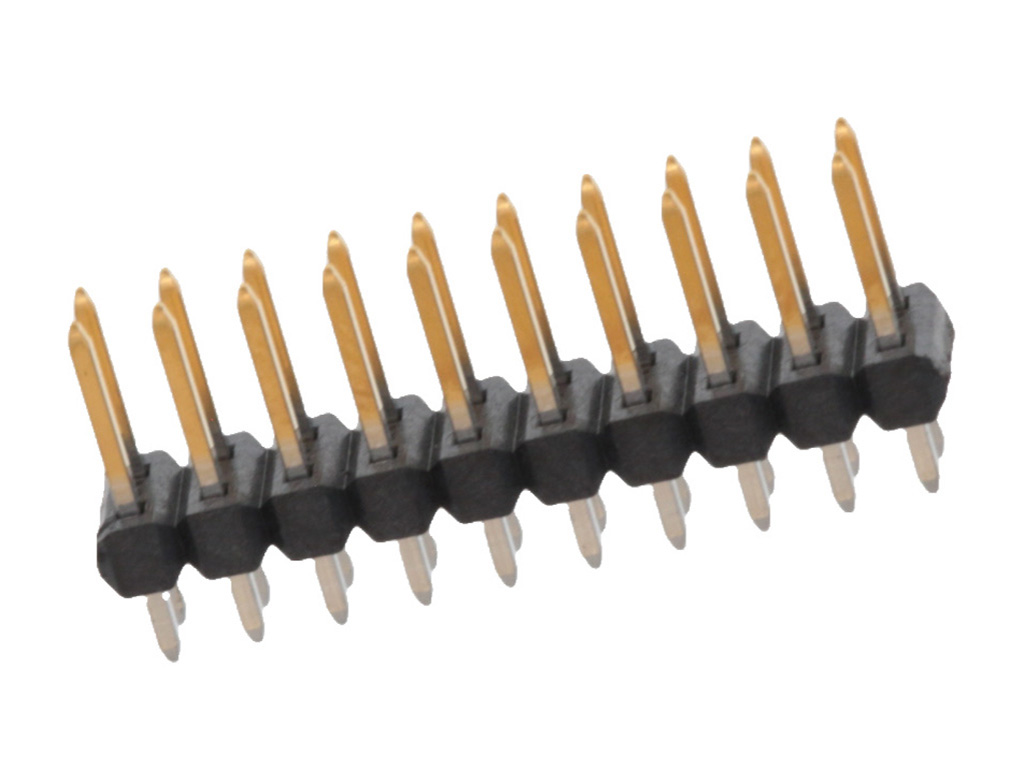

2.54mm Pitch C-Grid Breakaway Header, Dual Row, Vertical, High Temperature, 20 Circuits, 0.76µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating, 2.72mm PC Tail
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
10-89-7200,
0010897200, A-70280-0090 |
Where to Buy
Prices starting from US$0.26
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.26
|
12
in stock
|
Buy Now |
|
Heilind Americas
from US$2.61
|
3
in stock
|
Buy Now |
|
Avnet America
from US$1.91
|
0
in stock
|
Buy Now |
|
RS Americas
from US$3.99
|
0
in stock
|
Buy Now |
|
element14
from US$3.15
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$2.67
|
0
in stock
|
Buy Now |
|
Sager
from US$2.69
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.16
|
0
in stock
|
Buy Now |
|
Farnell
from US$3.28
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | C-Grid |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Breakaway | Yes |
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Mounting Style | Through Hole |
| Net Weight | 1.196/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 2.79mm |
| Pitch Mating Interface | 2.54mm |
| Pitch Termination Interface | 2.54mm |
| Plating Min Mating | 0.813µm |
| Plating Min Termination | 2.032µm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Shrouded | Unshrouded |
| Stackable | Yes |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
