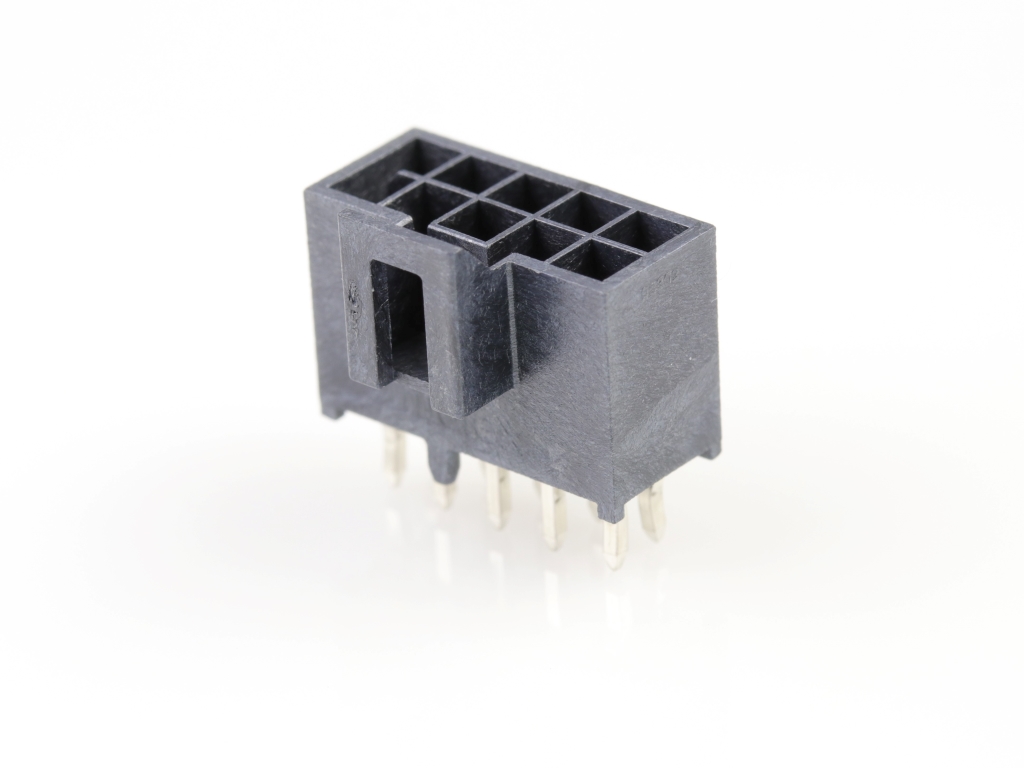

1053101210 Nano-Fit by Molex
Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 10 Circuits, with Kinked Pins, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable, Tray
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 105310-1210 |
Where to Buy
Prices starting from US$1.64
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$2.42
|
5,733
in stock
|
Buy Now |
|
Avnet America
from US$1.64
|
3,360
in stock
|
Buy Now |
|
TME
from US$2.30
|
1,390
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.03
|
840
in stock
|
Buy Now |
|
Newark Electronics
from US$2.78
|
554
in stock
|
Buy Now |
|
element14
from US$2.40
|
531
in stock
|
Buy Now |
|
Farnell
from US$2.79
|
531
in stock
|
Buy Now |
|
RS Americas
from US$2.36
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$2.03
|
0
in stock
|
Buy Now |
|
Sager
from US$2.08
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.05
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.79
|
0
in stock
|
Buy Now |
|
Rutronik
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 0.910/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Packaging Alternative Part | Array |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm, 2.40mm |
| Pc Tail Length | 3.20mm |
| Pitch Mating Interface | 2.50mm |
| Pitch Termination Interface | 2.50mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 1.524µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +125°C |
| Termination Interface Style | Through Hole |
